APEX SHARP

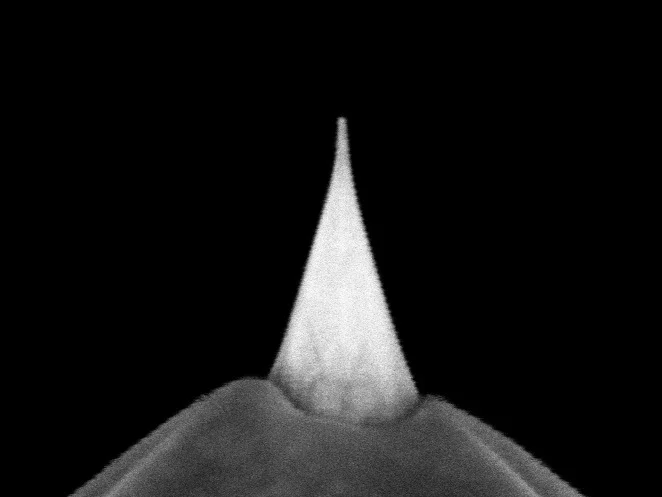

Our flagship highly conductive Apex Sharp diamond probes, formed by a patented process ensure the best possible nanomechanical and electrical performance. Quantitative and repeatable measurements for over 24 hours of continuous use have been demonstrated with these probes. By using wear-resistant sharp diamond probes the tip-sample contact size is well characterized and stays constant during mechanical and electrical measurements leading to more reliable data.

  • Highly doped with boron with a macroscopic resistivity of 0.003 - 0.005 Ω∙cm

  • Typical contact resistance of 10 kΩ depending on contact radius (measured on a silver surface)

  • Gold reflex coating on the detector side of the cantilever to enhance reflectivity




Tip Specifications


AS SS.png


Bulk Tip see < General >

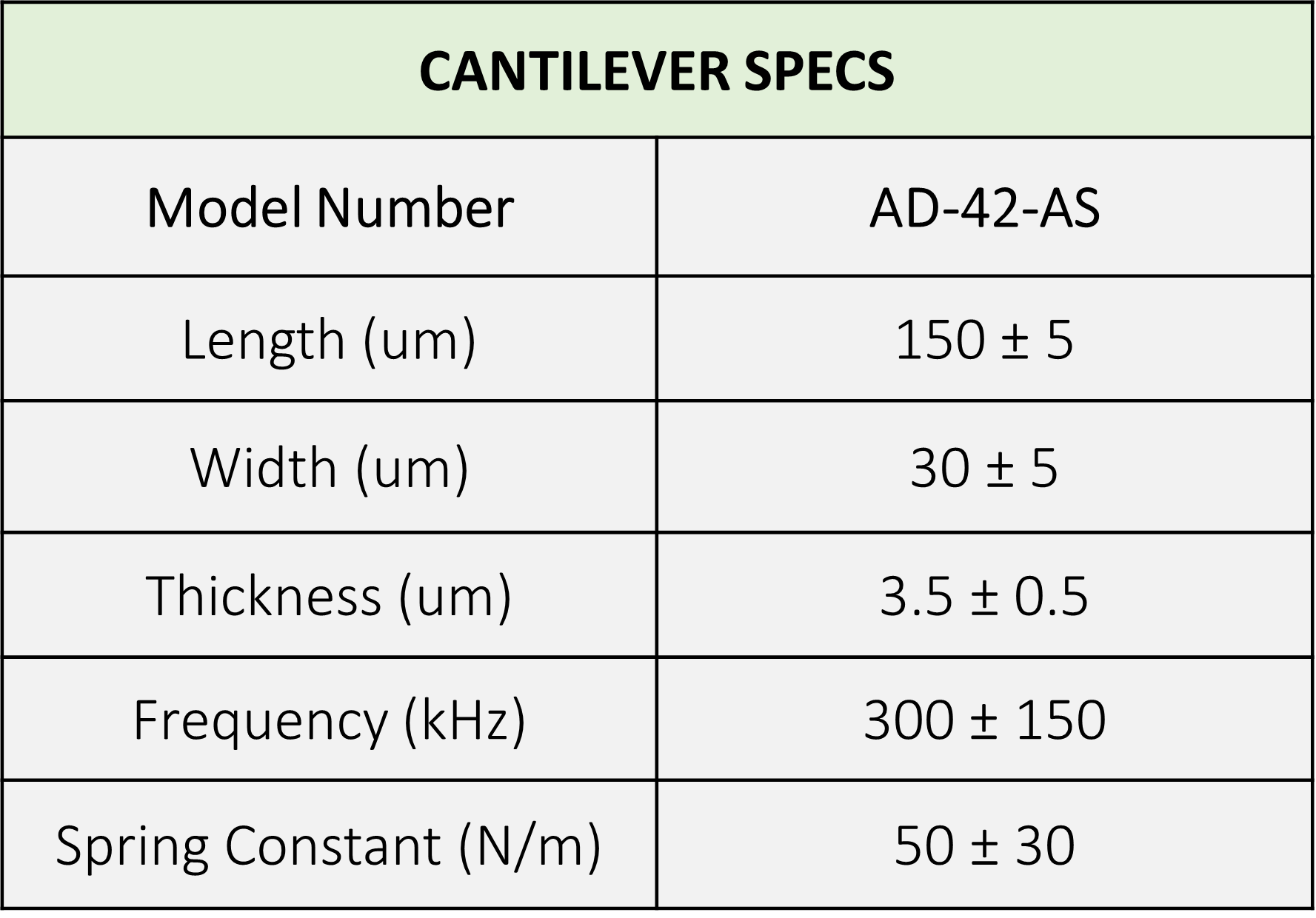

Cantilever Specifications






Pricing



Price per unit probe:

  • AD-2.8-AS: €180 or $200

  • AD-40-AS: €180 or $200

  • AD-42-AS: €180 or $200

  • AD-450-AS: €225 or $250

  • AD-1.2K-AS: €450 or $500

Minimum quantity:

  • 5 probes in one box (5-pack)

  • Must order in multiples of 5 probes

  • Multiply x5 for 5-pack price



Volume discounts:

  • 25-pack = 5 %

  • 50-pack = 10 %

  • 100-pack = 15 %

Price List:

Options:

Add -SEM to model number to include

  • High-resolution SEM tip image

  • Tip radius measured at 5, 10 and 100 nm below the tip apex

  • Full cone angle measured between 20 and 100nm

  • Tip Height

  • add €45 or $50 per probe
